3D Printed Cooling Enclosure

1

Just sharing my summer project::

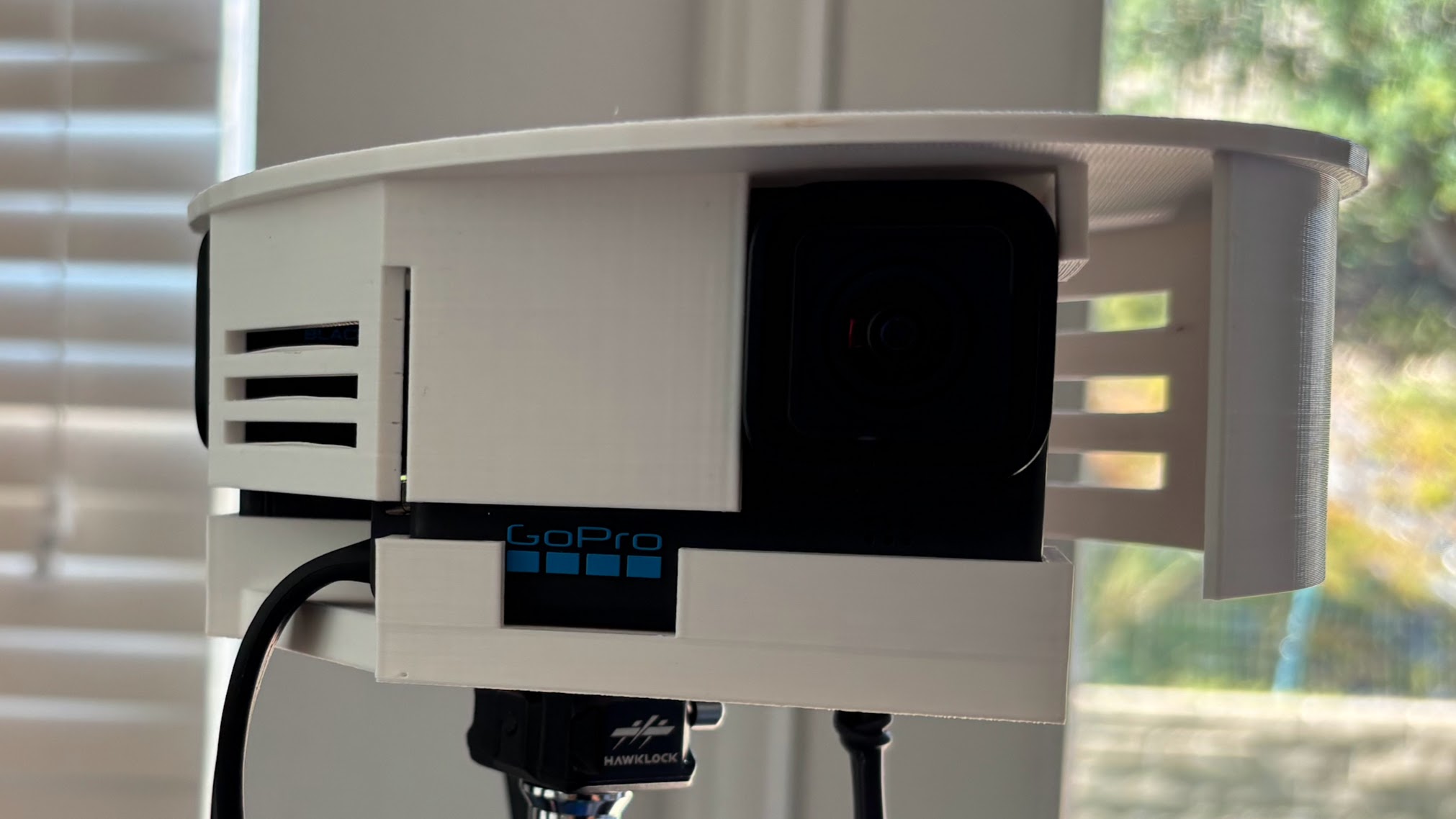

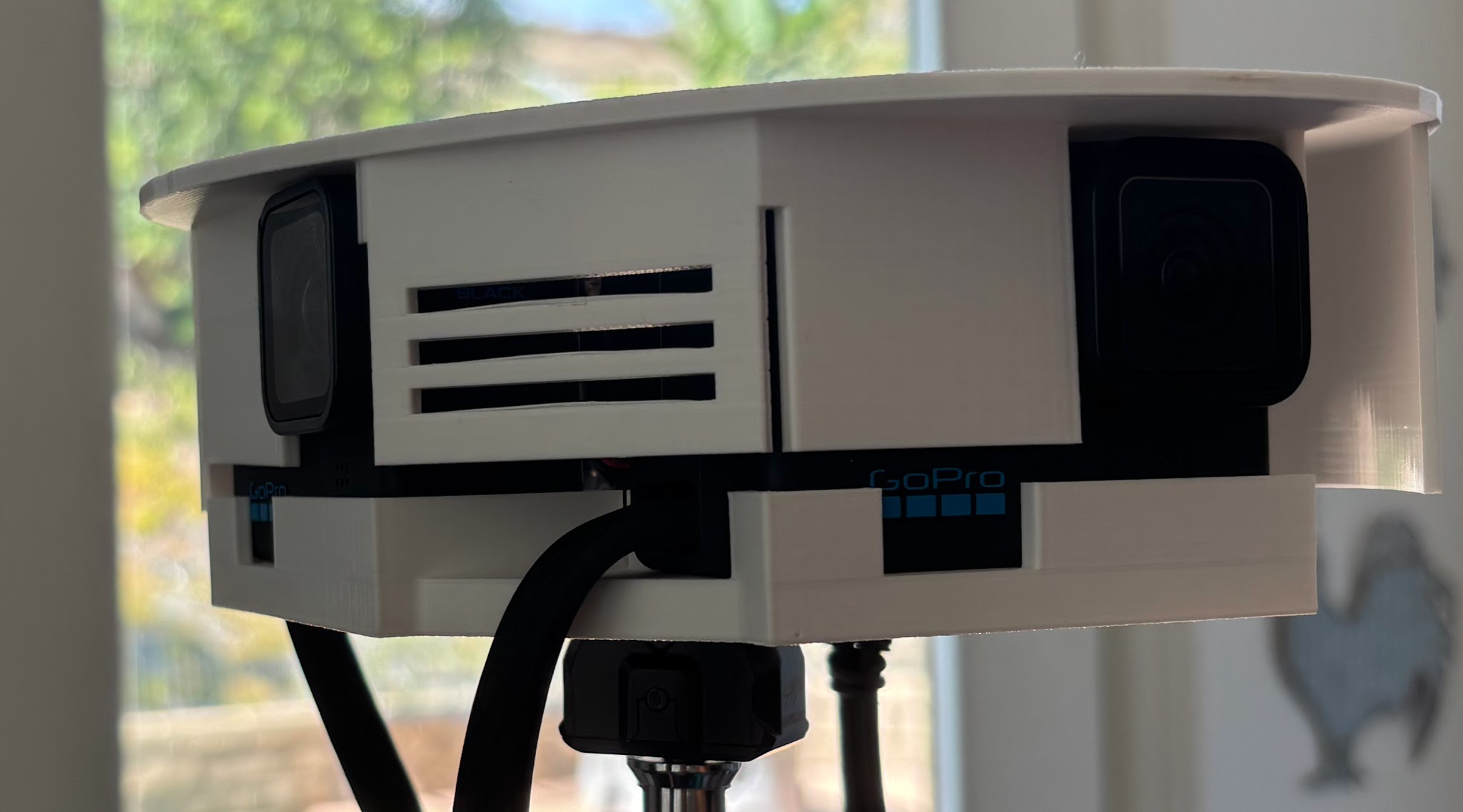

Dual Gopro 12 - External Battery - Triple Fan cooling
A big thanks to Gchen for His (Her?) awesome and inspiring work :slightly_smiling_face:

Cam
Cam601×610 81.5 KB

2 Likes
2

This is so cool! Are you going to make a kit to sell to interested users?

1 Like
3

Thank you :blush:
Well I haven’t thought about it…
But coupled with ActionStitch AI it would make a nice product!

Cam1

1 Like
4

Hi.
This looks really impressive. What have you done for sound?
Would you share some more details on your project? Would you share your 3D model?

Thanks

5

Thank you :slight_smile:

  • There’s no audible noise from the fans - they run slow thanks to a speed controller inside the frame

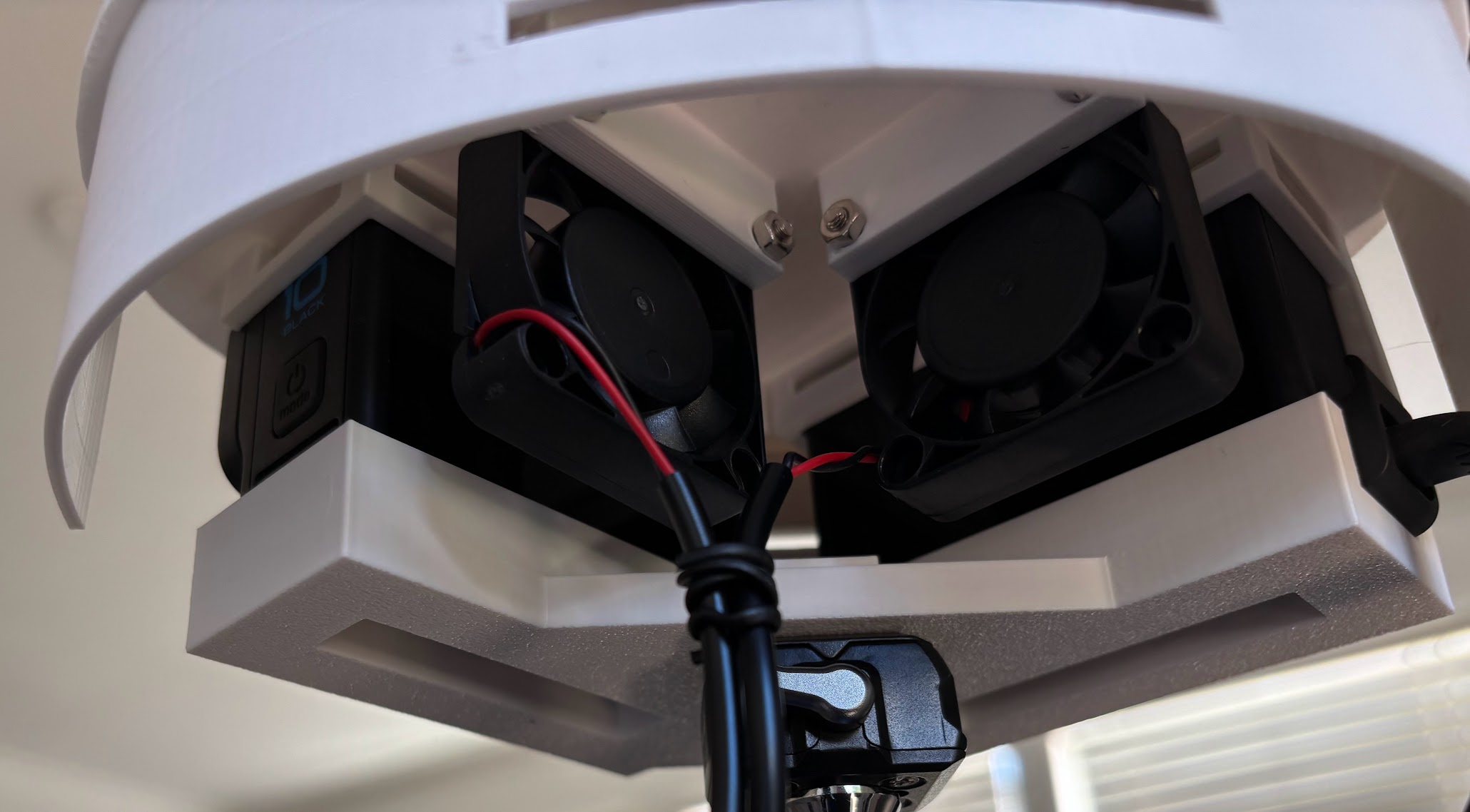

  • In addition to the top fan, two very small fans are replacing the gopro batteries - they act as heat exchanger, forcing fresh air in a hot air out

  • For easy access, the sd cards are placed outside the gopro via a microsd flat cable, they’re accessible from the top of the frame

  • The frame is mounted on a 3.2m Manfrotto tripod - it’s high enough to record basketball games

  • I created this at work to showcase our rapid prototyping skills to a potential customer. However, my boss prefers that I don’t share the CAD design - sorry about that

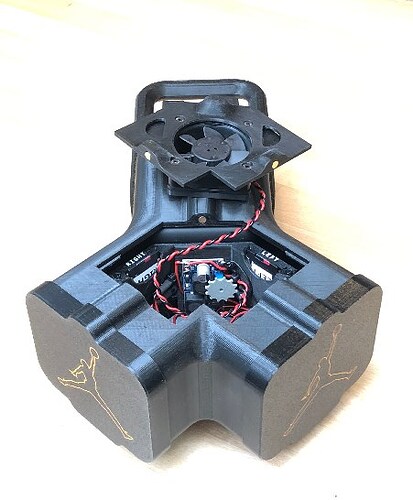

Open
Open451×546 45.6 KB

6

Add me to the list of interested customers.
